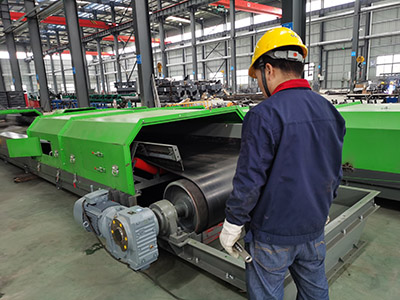

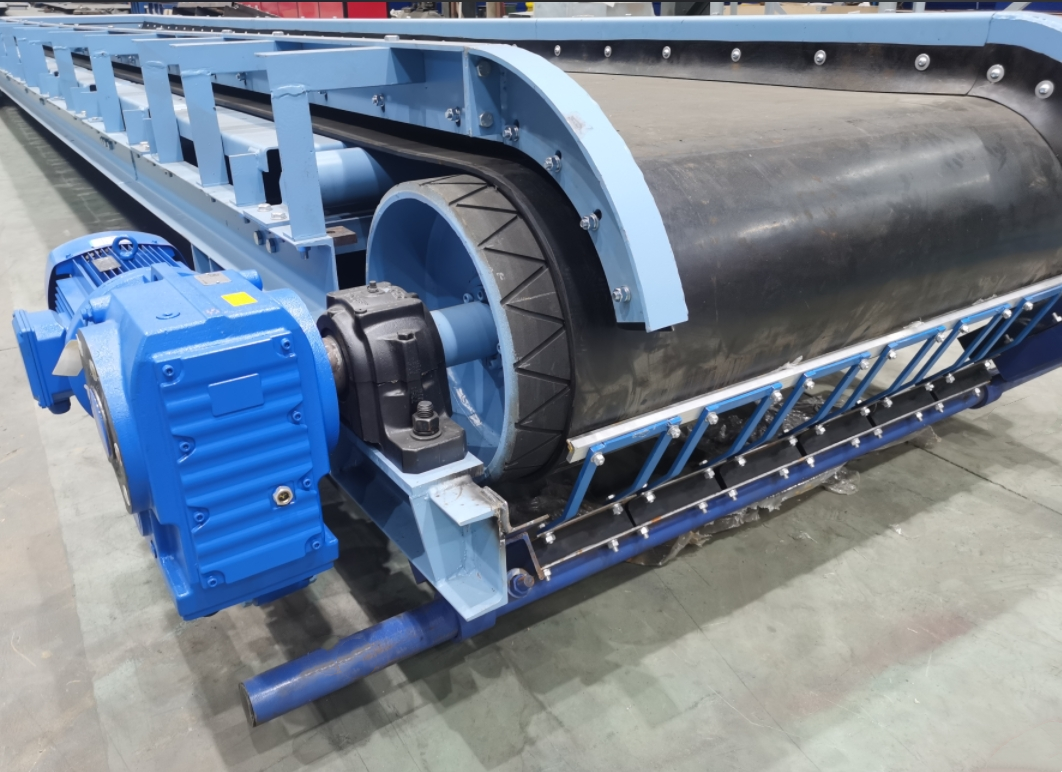

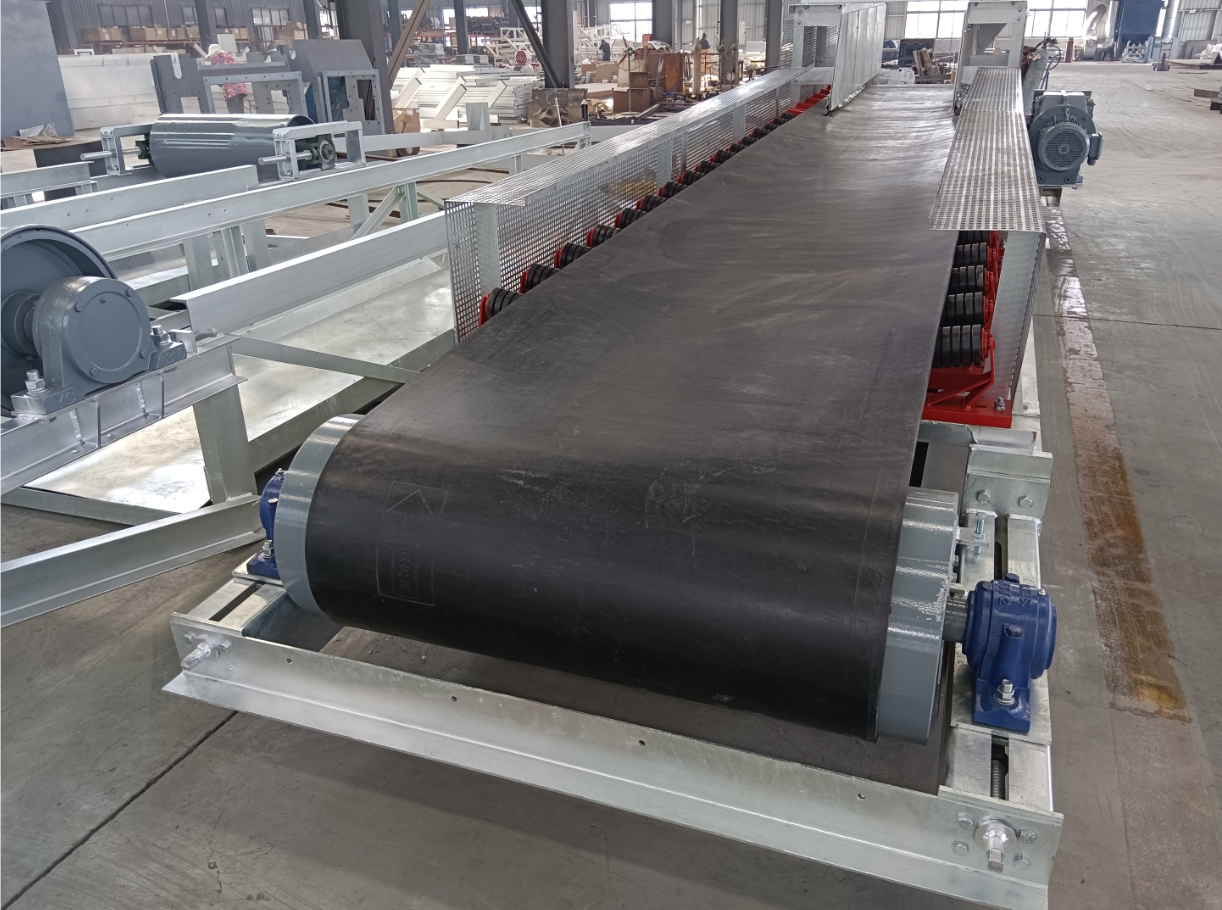

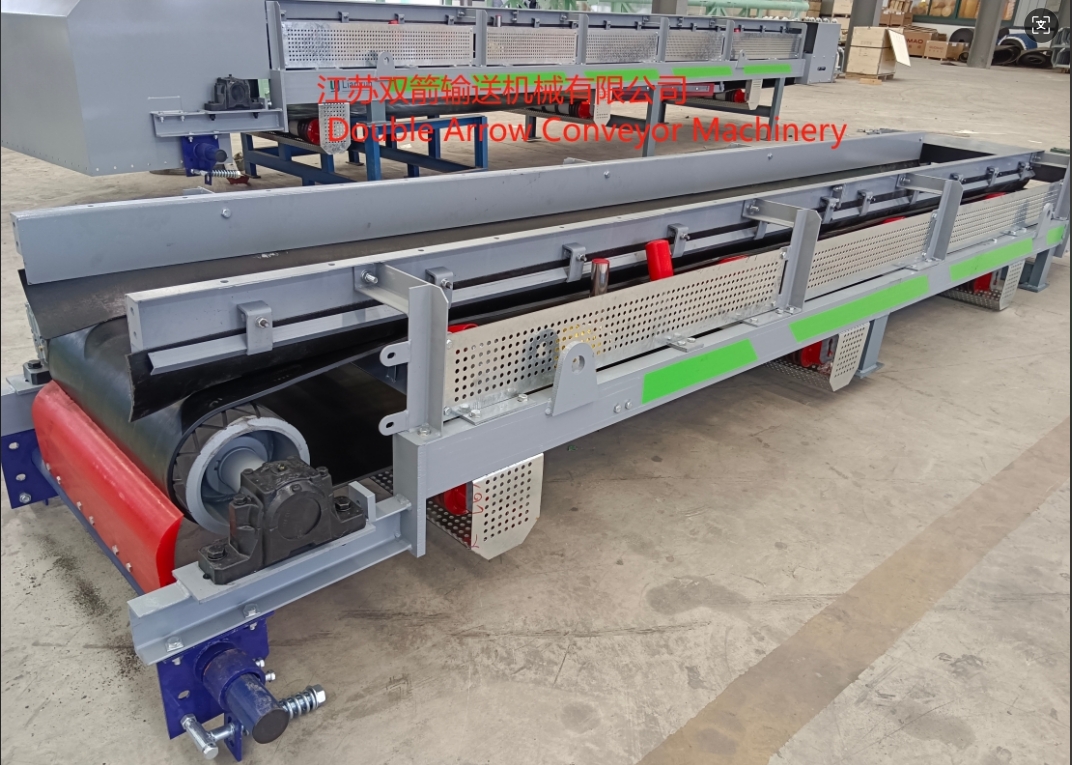

Belt conveyor

Release date:2024-06-17 Overall View:

Belt conveyors have attained a dominant position in transporting bulk materials due to such inherent advantages as their economy and safety of operation, reliability, versatility, and practically unlimited range of capacities. In addition, they are suitable for performing numerous processing functions in connection with their normal purpose of providing a continuous flow of material between operations. Recently, their conformity to environmental requirements has provided a further incentive for selection of belt conveyors over other means of transportation.



Low labor and low energy requirements are fundamental with belt conveyors as compared with other means of transportation. Dramatic increases in operating costs continue to make conveyors an extremely favorable choice for applications that were not considered previously.

'

 Belt Conveyor Technical Specifications

带速V,带宽B与输能力Q的关系

Belt width
(mm)

Belt speed V ( m/s)

0.8

1

1.3

1.6

2

2.5

3.2

4

5

6.5

Capacity Q  (m³/h)

500

69

87

108

139

174

217





650

127

159

198

254

318

397





800

198

248

310

397

496

620

781




1000

324

405

507

649

811

1014

1278

1622



1200


593

742

951

1188

1486

1872

2377

2971


1400


825

1032

1321

1652

2065

2602

3304

4130


1600





2186

2733

3444

4373

5466


1800





2795

3494

4403

5591

6989

9083

2000





3470

4338

5466

6941

8676

11277

2200







6843

8690

10863

14120

2400







8289

10526

13158

17104

Remark:

The conveying capacity Q value series is calculated based on horizontal transportation, with the running pile angle being 20° and the trough angle being 35°, It does not take into account the possible changes in the 0 angle when the belt speed is different.
