China GB standard

Release date:2024-11-09 Overall View:

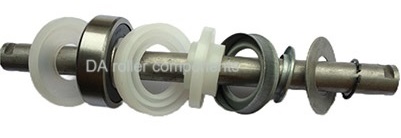

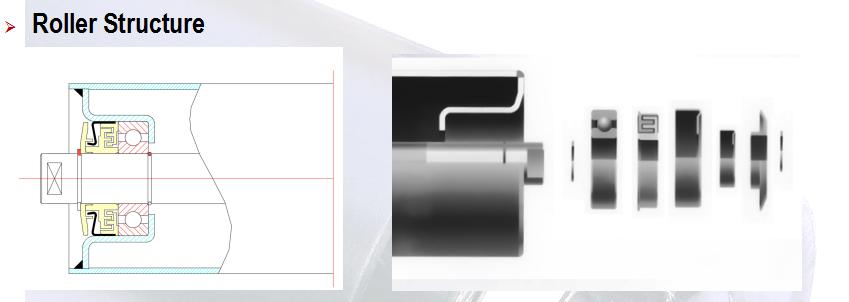

China GB DTⅡ Type B500- B1400 Idler Specification
B.W	Name	Spec	Bearig	Idler Drawing No.	Roller drawing No.

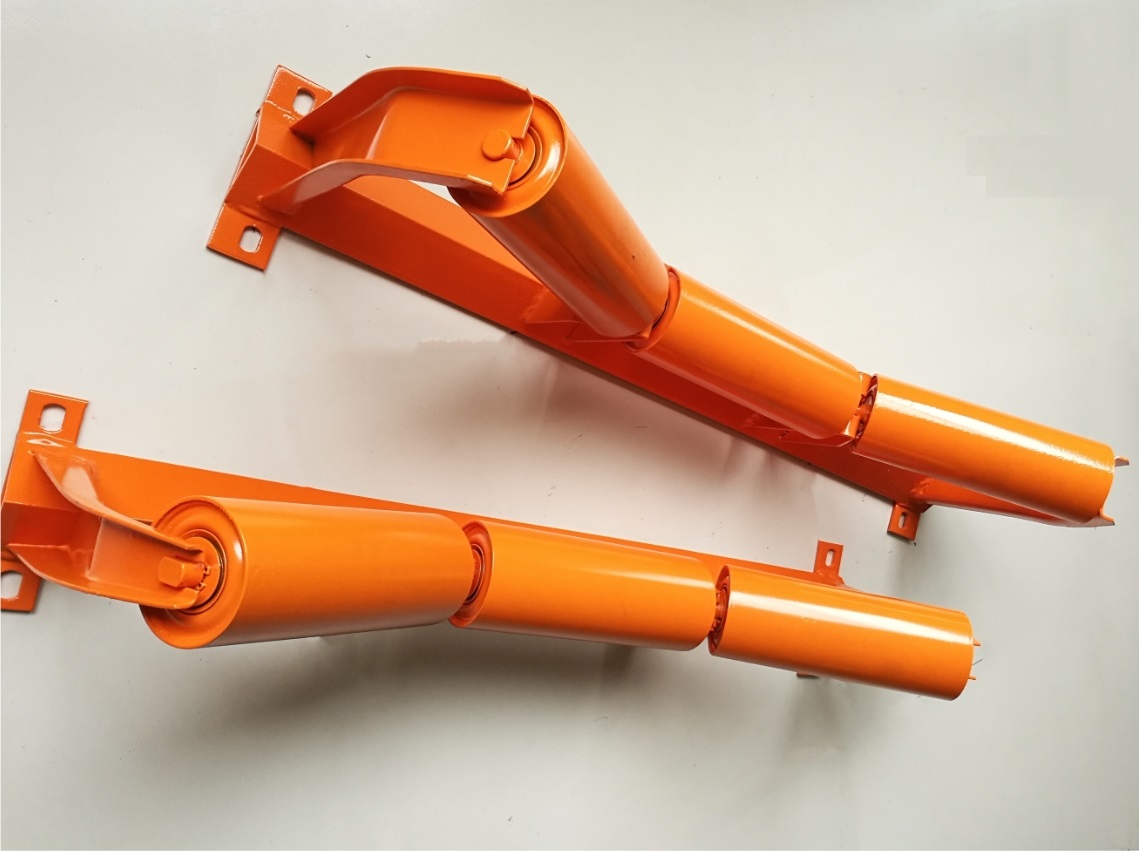

B500	Carrier idler	89×200	4G204	DTⅡ01C0111	DTⅡGP1101
	Impact idler	89×200	4G204	DTⅡ01C0711	DTⅡGH1101
	Carrier Flat idler	89×600	4G204	DTⅡ01C1411	DTⅡGP1107
	Return Flat idler	89×600	4G204	DTⅡ01C2111	DTⅡGP1107

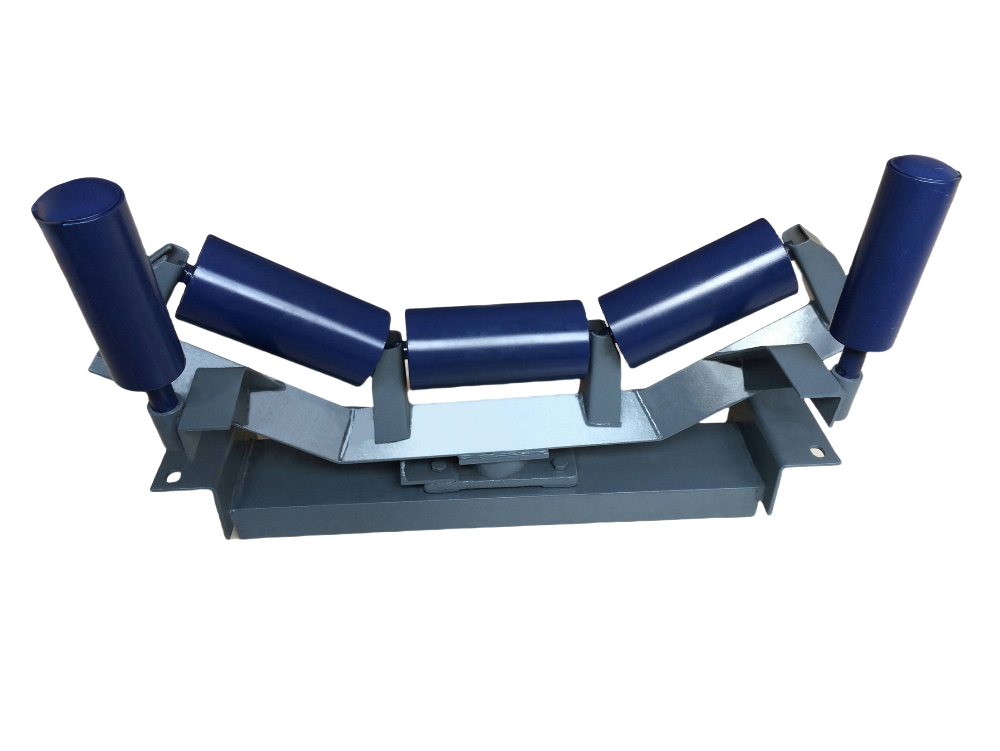

	Carrier self aligning idler	89×230	4G204	DTⅡ01C1111	DTⅡ01C1111-1
	Return self aligning idler	89×323	4G204	DTⅡ01C2811	DTⅡ01C2811-1
B650	Carrier idler	89×250	4G204	DTⅡ02C0111	DTⅡGP1102
	Impact idler	89×250	4G204	DTⅡ02C0711	DTⅡGH1102
	Carrier Flat idler	89×750	4G204	DTⅡ02C1411	DTⅡGP1109
	Return Flat idler	89×750	4G204	DTⅡ02C2111	DTⅡGP1109
	Carrier self aligning idler	89×280	4G204	DTⅡ02C1111	DTⅡ02C1111-1
	Return self aligning idler	89×398	4G204	DTⅡ02C2811	DTⅡ02C2811-1
B800	Carrier idler	89×315	4G204	DTⅡ03C0111	DTIIGP1103
		108×315	4G204	DTⅡ03C0121	DTIIGP2103
		108×315	4G205	DTⅡ03C0122	DTIIGP2203
	Impact idler	89×315	4G204	DTⅡ03C0711	DTIIGH1103
	Impact idler	108×315	4G205	DTⅡ03C0722	DTIIGH2203
	Carrier Flat idler	89×950	4G205	DTⅡ03C1412	DTIIGP1211
	Carrier Flat idler	108×950	4G305	DTⅡ03C1423	DTIIGP2311
	Return Flat idler	89×950	4G204	DTⅡ03C2111	DTIIGP1111
		89×950	4G205	DTⅡ03C2112	DTIIGP1211
		108×950	4G204	DTⅡ03C2121	DTIIGP2111
		108×950	4G205	DTⅡ03C2122	DTIIGP2211
		108×950	4G305	DTⅡ03C2123	DTIIGP2311
	Carrier friction self aligning idler	89×323	4G204	DTⅡ03C1111	Ⅱ03c1111-1
	Carrier friction self aligning idler	108×342	4G205	DTⅡ03C1122	Ⅱ03C1122-1
	Return friction self aligning idler	89×473	4G204	DTⅡ03C2811	Ⅱ03C2811-1
	Return friction self aligning idler	108×488	4G205	DTⅡ03C2822	Ⅱ03C2822-1

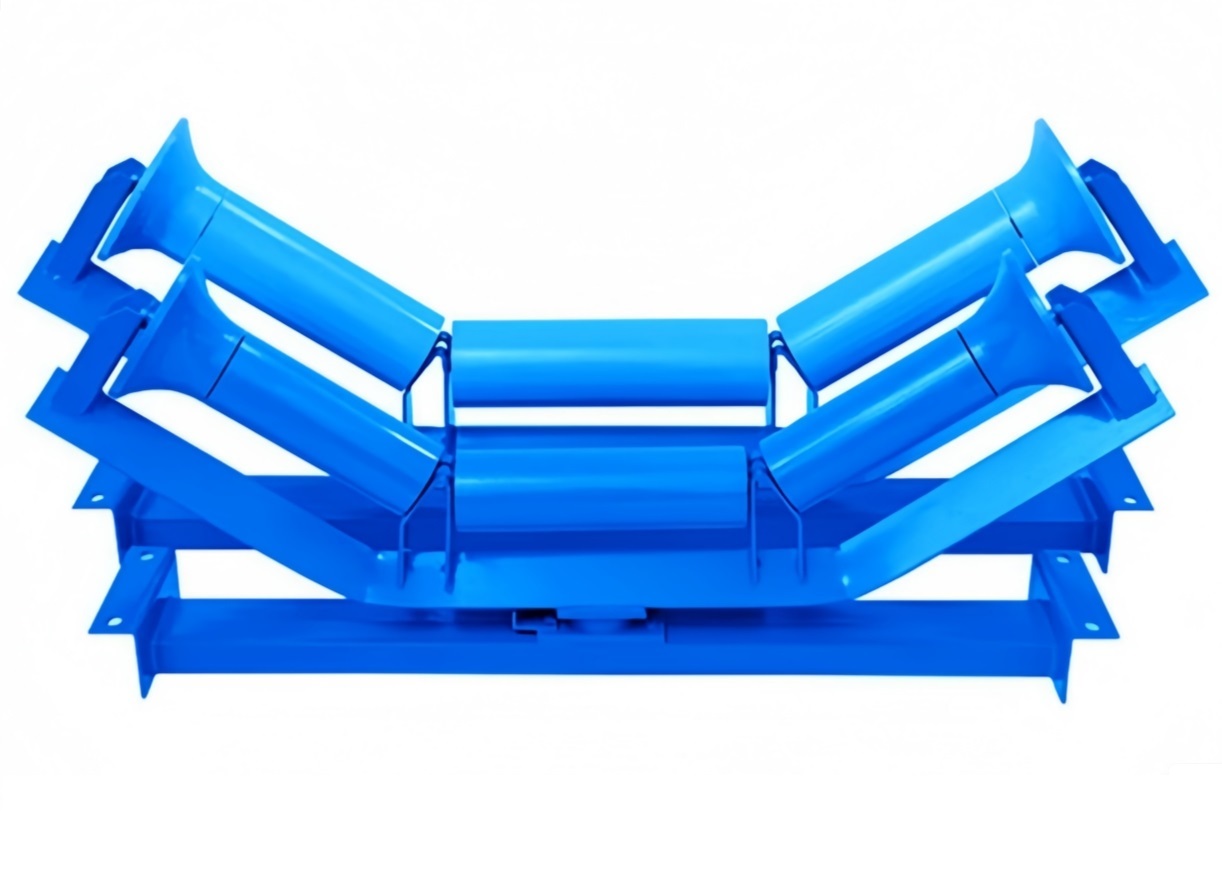

	Carrier taper self aligning idler	89×133×340	4G205	DTⅡ03C1211	Ⅱ03C1211-1
	Carrier taper self aligning idler	89×133×340	4G205	DTⅡ03C1222	Ⅱ03C1211-1
	Return taper self aligning idler	108×159×445	4G305	DTⅡ03C3043	DTⅡ03C3043-1
B800	V type forward tilting idler	89×465	4G204	DTⅡ03C2611	DTIIGP1105
		108×465	4G204	DTⅡ03C2621	DTIIGP2105
		108×465	4G205	DTⅡ03C2622	DTIIGP2205
		108×465	4G305	DTⅡ03C2623	DTIIGP2305
	Return sleeve comb flat idler	108×950	4G204	DTⅡ03C2321	DTIIGS2111
	V Type sleeve comb idler	108×465	4G204	DTⅡ03C2721	DTIIGS2105
	Spiral idler	108(132)×950	4G204	DTⅡ03C3121	DTIIGL2111
	Spiral idler	108(132)×950	4G305	DTⅡ03C3123	DTIIGL2311
B1000	Carrier idler	108×380	4G205	DTⅡ04C0122	DTIIGP2204
		108×380	4G305	DTⅡ04C0123	DTIIGP2304
		133×380	4G205	DTⅡ04C0132	DTIIGP3204
		133×380	4G305	DTⅡ04C0133	DTIIGP3304
	Impact idler	108×380	4G305	DTⅡ04C0723	DTIIGH2304
	Impact idler	133×380	4G305	DTⅡ04C0734	DTIIGH3404
	Carrier Flat idler	108×1150	4G305	DTⅡ04C1423	DTIIGP2312
	Carrier Flat idler	133×1150	4G305	DTⅡ04C1433	DTIIGP3312
	Return Flat idler	108×1150	4G205	DTⅡ04C2122	DTIIGP2212
		108×1150	4G305	DTⅡ04C2123	DTIIGP2312
		133×1150	4G205	DTⅡ04C2132	DTIIGP3212
		133×1150	4G305	DTⅡ04C2133	DTIIGP3312
	Carrier friction self aligning idler	108×405	4G305	DTⅡ04C1123	II04C1123-1
	Carrier friction self aligning idler	133×412	4G305	DTⅡ04C1133	II04C1133-1
	Return friction self aligning idler	108×590	4G305	DTⅡ04C2823	Ⅱ04C2823-1
	Return friction self aligning idler	133×590	4G305	DTⅡ04C2833	Ⅱ04C2833-1
	Carrier taper self aligning idler	108×159×415	4G305	DTⅡ04C1223	Ⅱ04C1223-2
	Carrier taper self aligning idler	108×159×415	4G305	DTⅡ04C1233	Ⅱ04C1223-2
	Return taper self aligning idler	108×176×560	4G305	DTⅡ04C3053	Ⅱ04C3053-1
	V type forward tilting idler	108×600	4G205	DTⅡ04C2622	DTIIGP2207
		108×600	4G305	DTⅡ04C2623	DTIIGP2307
		133×600	4G205	DTⅡ04C2632	DTIIGP3207
		133×600	4G305	DTⅡ04C2633	DTIIGP3307
	Return sleeve comb flat idler	133×1150	4G205	DTⅡ04C2332	DTIIGS3212
	V Type sleeve comb idler	133×600	4G205	DTⅡ04C2732	DTIIGS3207
B1000	Spiral idler	108(132)×1150	4G305	DTⅡ04C3123	DTIIGL2312
B1000	Spiral idler	133(157)×1150	4G305	DTⅡ04C3133	DTIIGL3312
B.W	Name	Spec	Bearig	Idler Drawing No.	Roller drawing No.
B1200	Carrier idler	108×465	4G205	DTⅡ05C0122	DTIIGP2205
		108×465	4G305	DTⅡ05C0123	DTIIGP2305
		108×465	4G306	DTⅡ05C0124	DTIIGP2405
		133×465	4G205	DTⅡ05C0132	DTIIGP3205
		133×465	4G305	DTⅡ05C0133	DTIIGP3305
		133×465	4G306	DTⅡ05C0134	DTIIGP3405
		159×465	4G205	DTⅡ05C0142	DTIIGP4205
		159×465	4G305	DTⅡ05C0143	DTIIGP4305
		159×465	4G306	DTⅡ05C0144	DTIIGP4405
	Impact idler	108×465	4G305	DTⅡ05C0723	DTIIGH2305
		133×465	4G306	DTⅡ05C0734	DTIIGH3405
		159×465	4G306	DTⅡ05C0744	DTIIGH4405
		159×465	4G308	DTⅡ05C0746	DTIIGH4605
	Carrier Flat idler	108×1400	4G305	DTⅡ05C1423	DTIIGP2313
		133×1400	4G305	DTⅡ05C1433	DTIIGP3313
		159×1400	4G305	DTⅡ05C1443	DTIIGP4313
	Return Flat idler	108×1400	4G205	DTⅡ05C2122	DTIIGP2213
		108×1400	4G305	DTⅡ05C2123	DTIIGP2313
		108×1400	4G306	DTⅡ05C2124	DTIIGP2413
		133×1400	4G205	DTⅡ05C2132	DTIIGP3213
		133×1400	4G305	DTⅡ05C2133	DTIIGP3313
		133×1400	4G306	DTⅡ05C2134	DTIIGP3413
		159×1400	4G205	DTⅡ05C2142	DTIIGP4213
		159×1400	4G305	DTⅡ05C2143	DTIIGP4313
		159×1400	4G306	DTⅡ05C2144	DTIIGP4413
B1200	Carrier friction self aligning idler	108×465	4G205	120C414M-1	120C414M-2
		133×473	4G305	120C514M-1	120C514M-2
		159×494	4G306	120C614M-1	120C614M-2
	Return friction self aligning idler	108×690	4G205	120C461M-1	120C461M-2
		133×690	4G305	120C561M-1	120C561M-2
		159×690	4G306	120C661M-1	120C661M-2
	Carrier taper self aligning idler	108×176×500	4G306	DTⅡ05C1224	Ⅱ05C1224-2
		108×176×500	4G306	DTⅡ05C1234	Ⅱ05C1234-2
		133×194×500	4G306	DTⅡ05C1244	Ⅱ05C1244-2
B1200	Return taper self aligning idler	108×194×680	4G306	DTⅡ05C3054	Ⅱ05C3054-1
	V type forward tilting idler	108×700	4G205	DTⅡ05C2622	DTIIGP2208
		108×700	4G305	DTⅡ05C2623	DTIIGP2308
		133×700	4G205	DTⅡ05C2632	DTIIGP3208
		133×700	4G305	DTⅡ05C2633	DTIIGP3308
		159×700	4G205	DTⅡ05C2642	DTIIGP4208
		159×700	4G305	DTⅡ05C2643	DTIIGP4308
	Return sleeve comb flat idler	159×1400	4G205	DTⅡ05C2342	DTIIGS4213
		159×1400	4G305	DTⅡ05C2343	DTIIGS4313
		159×1400	4G306	DTⅡ05C2344	DTIIGS4413
	V Type sleeve comb idler	133×700	4G205	DTⅡ05C2732	DTIIGS3208
		159×700	4G205	DTⅡ05C2742	DTIIGS4208
		159×700	4G305	DTⅡ05C2743	DTIIGS4308
	Spiral idler	133(157)×1400	4G305	DTⅡ05C3133	DTIIGL3313
	Spiral idler	133×1400	4G306	DTⅡ05C3134	DTIIGL3413
	Spiral idler	159(183)×1400	4G305	DTⅡ05C3143	DTIIGL4313
	Spiral idler	159×1400	4G306	DTⅡ05C3144	DTIIGL4413
B1400	Carrier idler	108×530	4G305	DTⅡ06C0123	DTIIGP2306
		108×530	4G306	DTⅡ06C0124	DTIIGP2406
		133×530	4G305	DTⅡ06C0133	DTIIGP3306
		133×530	4G306	DTⅡ06C0134	DTIIGP3406
		159×530	4G305	DTⅡ06C0143	DTIIGP4306
		159×530	4G306	DTⅡ06C0144	DTIIGP4406
	Impact idler	108×530	4G305	DTⅡ06C0723	DTIIGH2306
		133×530	4G306	DTⅡ06C0734	DTIIGH3406
		159×530	4G306	DTⅡ06C0744	DTIIGH4406
	Carrier Flat idler	108×1600	4G305	DTⅡ06C1423	DTIIGP2314
		133×1600	4G305	DTⅡ06C1433	DTIIGP3314
		159×1600	4G305	DTⅡ06C1443	DTIIGP4314
	Return Flat idler	108×1600	4G305	DTⅡ06C2123	DTIIGP2314
		108×1600	4G306	DTⅡ06C2124	DTIIGP2414
		133×1600	4G305	DTⅡ06C2133	DTIIGP3314
		133×1600	4G306	DTⅡ06C2134	DTIIGP3414
		159×1600	4G305	DTⅡ06C2143	DTIIGP4314
		159×1600	4G306	DTⅡ06C2144	DTIIGP4414
B1400	Carrier friction self aligning idler	108×533	4G205	140C414M	140C414M-2
		133×540	4G305	140C514M	140C514M-2
		159×553	4G306	140C614M	1400614M-2
	Return friction self aligning idler	108×790	4G205	140C461M	140C461M-2
		133×790	4G305	140C561M	140C561M-2
		159×799	4G306	140C661M	140C661M-2
	Carrier taper self aligning idler	108×176×550	4G305	DTⅡ06C1223	Ⅱ06C1223-1
		108×176×550	4G306	DTⅡ06C1224	Ⅱ06C1224-1
		108×176×550	4G305	DTⅡ06C1233	Ⅱ06C1223-1
		108×176×550	4G306	DTⅡ06C1234	Ⅱ06C1224-1
		133×194×550	4G305	DTⅡ06C1243	Ⅱ06C1243-1
		133×194×550	4G306	DTⅡ06C1244	Ⅱ06C1244-1
	Return taper self aligning idler	108×194×780	4G306	DTⅡ06C3054	Ⅱ06C3054-1
	V type forward tilting idler	108×800	4G305	DTⅡ06C2623	DTIIGP2310
		108×800	4G306	DTⅡ06C2624	DTIIGP2410
		133×800	4G305	DTⅡ06C2633	DTIIGP3310
		133×800	4G306	DTⅡ06C2634	DTIIGP3410
		159×800	4G305	DTⅡ06C2643	DTIIGP4310
		159×800	4G306	DTⅡ06C2644	DTIIGP4410
	Return sleeve comb flat idler	159×1600	4G305	DTⅡ06C2343	DTIIGS4314
	Return sleeve comb flat idler	159×1600	4G306	DTⅡ06C2344	DTIIGS4414
	V Type sleeve comb idler	133×800	4G205	DTⅡ06C2732	DTIIGS3210
		159×800	4G306	DTⅡ06C2743	DTIIGS4310
		159×800	4G306	DTⅡ06C2744	DTIIGS4410
	Spiral idler	133×1600	4G305	DTⅡ06C3133	DTIIGL3314
		133(157)×1600	4G306	DTⅡ06C3134	DTIIGL3414
		159×1600	4G305	DTⅡ06C3143	DTIIGL4314
		159(183)×1600	4G306	DTⅡ06C3144	DTIIGL4414

China GB TD75 type B500-B1400 Idler specification
B.W	Name	Spec Dia.*Length	Bearing	Idler drawing No.	Roller rawing No.
B500	Carrier idler	89×190	4G204	TD1C1	1C1.1
	carrier flat idler	89×600	4G204	TD1C2	1C2.1
	Return flat idler	89×600	4G204	TD1C3	1C2.1
	carrier self aligning idler	89×190	4G204	TD1C4
	Return self aligning ilder	89×600	4G204	TD1C6
	Impact idler	89(54)×190	4G204	TD1C9	1C9.1
	Side roller	54x 154x 194x d20	4G204		1C4.1
B650	Carrier idler	89×240	4G204	TD2C1	2C1.1
	carrier flat idler	89×750	4G204	TD2C2	2C2.1
	Return flat idler	89×750	4G204	TD2C3	2C2.1
	carrier self aligning idler	89×240	4G204	TD2C4
	Return self aligning ilder	89×750	4G204	TD2C6
	Impact idler	89×240	4G204	TD2C9	2C9.1
B800	Carrier idler	89×305	4G204	TD3C1	3C1.1
	carrier flat idler	89×950	4G204	TD3C2	3C2.1
	Return flat idler	89×950	4G204	TD3C3	3C2.1
	carrier self aligning idler	89×305	4G204	TD3C4
	Return self aligning ilder	89×950	4G204	TD3C6
	Impact idler	89(54)x305	4G204	TD3C9	3C9.1
B1000	Carrier idler	89×375	4G204	* DA
	Carrier idler	108×375	4G205	TD4C1	4C1.1
	carrier flat idler	108×1150	4G205	TD4C2	4C2.1
	Return flat idler	108×1150	4G205	TD4C3	4C2.1
	carrier self aligning idler	108×375	4G205	TD4C4
	Return self aligning ilder	108×1150	4G205	TD4C6
	Impact idler	89(54)x375	4G204	SGC
	Impact idler	108(60)x375	4G205	TD4C9	4C9.1
B1200	Carrier idler	89×455	4G204	* DA
	Carrier idler	108×455	4G205	* DA
	Carrier idler	108×455	4G305	TD5C1	5C1.1
	carrier flat idler	108×1400	4G305	TD5C2	5C2.1
	Return flat idler	108×1400	4G205	SGC
	Return flat idler	108×1400	4G305	TD5C3	5C2.1
	carrier self aligning idler	108×455		TD5C4
	Return self aligning ilder	108×1400		TD5C6
	Impact idler	108(60)x455	4G205	TD5C9
B1400	Carrier idler	89×525	4G204	* DA
	Carrier idler	108×525	4G205	* DA
	Carrier idler	108×525	4G305	TD6C1	6C1.1
	carrier flat idler	108×1600	4G305	TD6C2	6C2.1
	Return flat idler	108×1600	4G205	SGC
	Return flat idler	108×1600	4G305	TD6C3	6C2.1
	carrier self aligning idler	108×525		TD6C4
	Return self aligning ilder	108×1150		TD6C6
	Impact idler	108(60)x525	4G205	TD6C9	6C9.1
